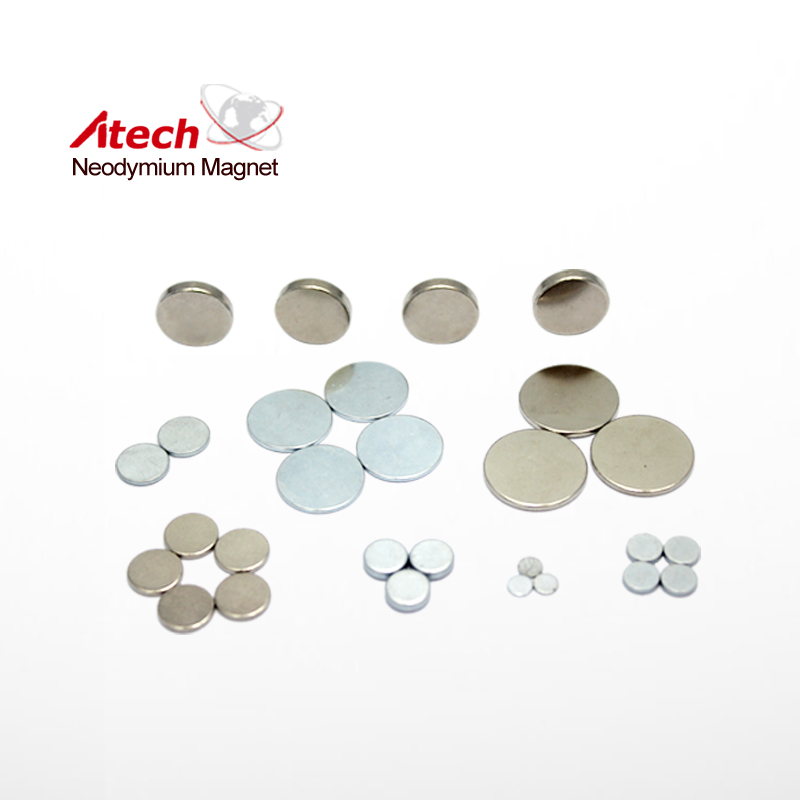

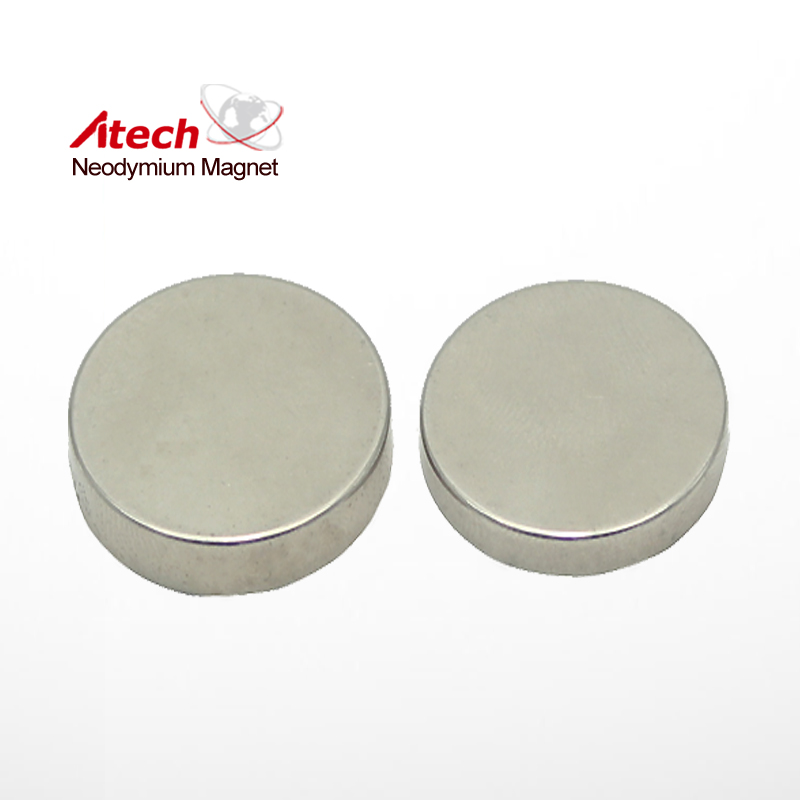

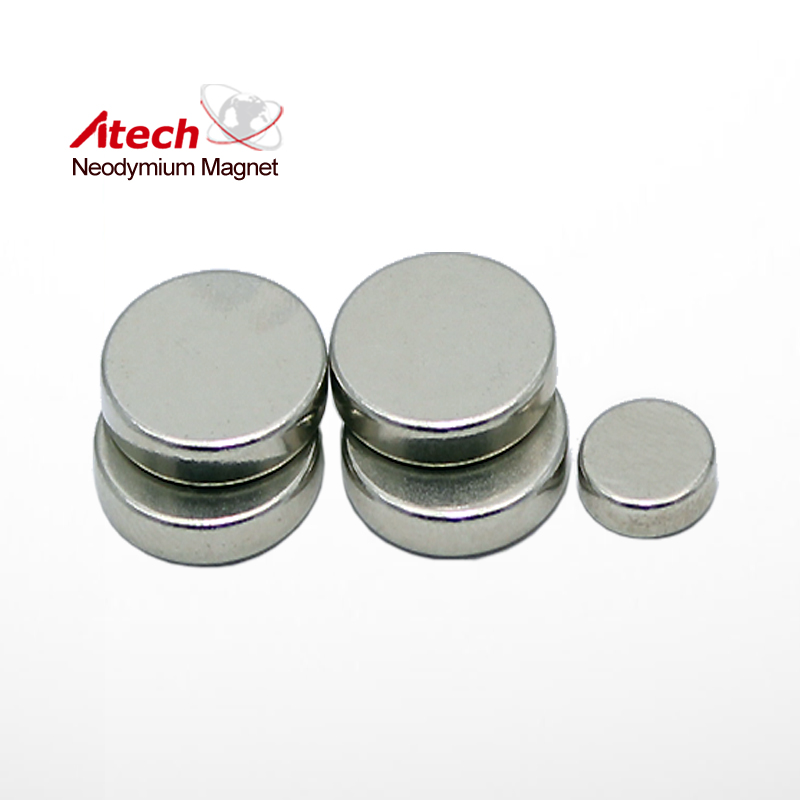

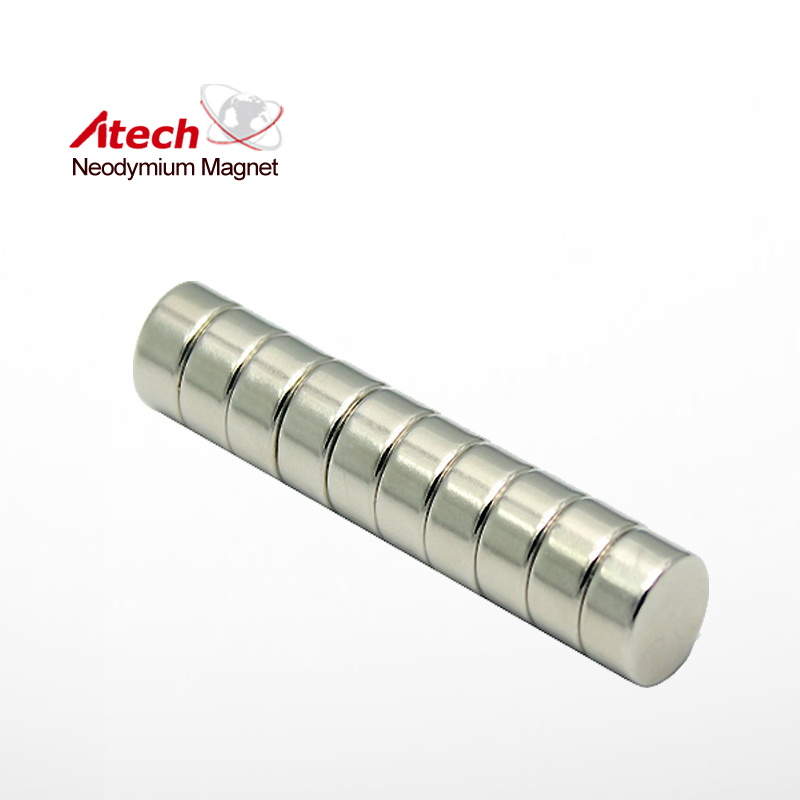

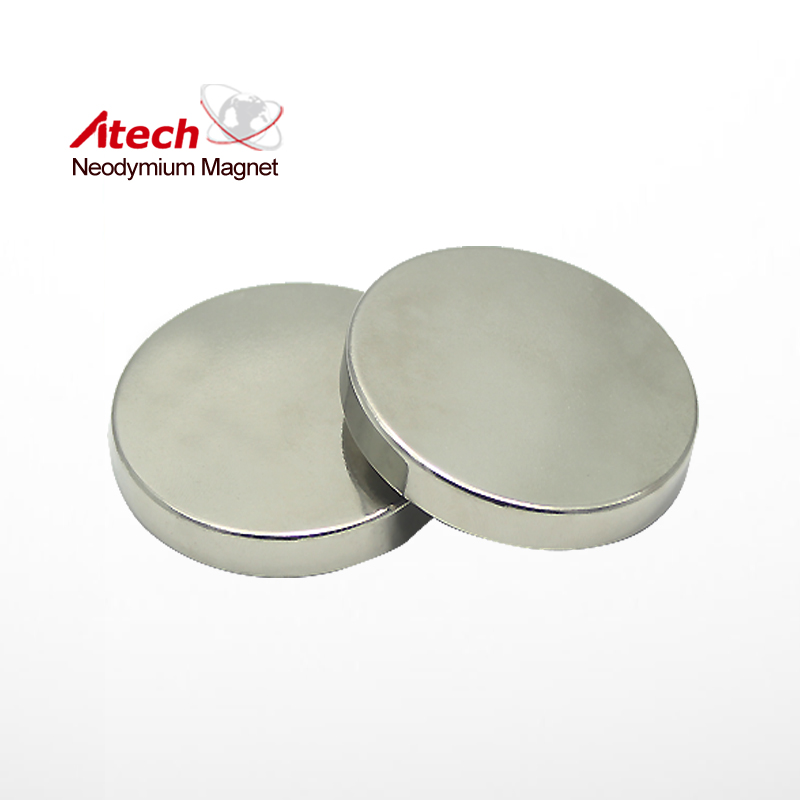

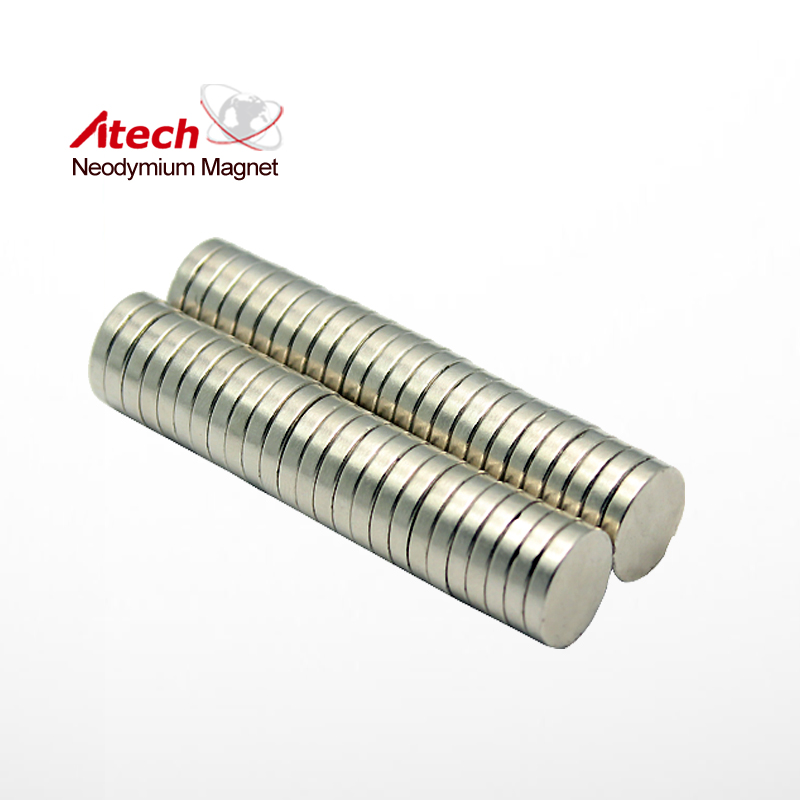

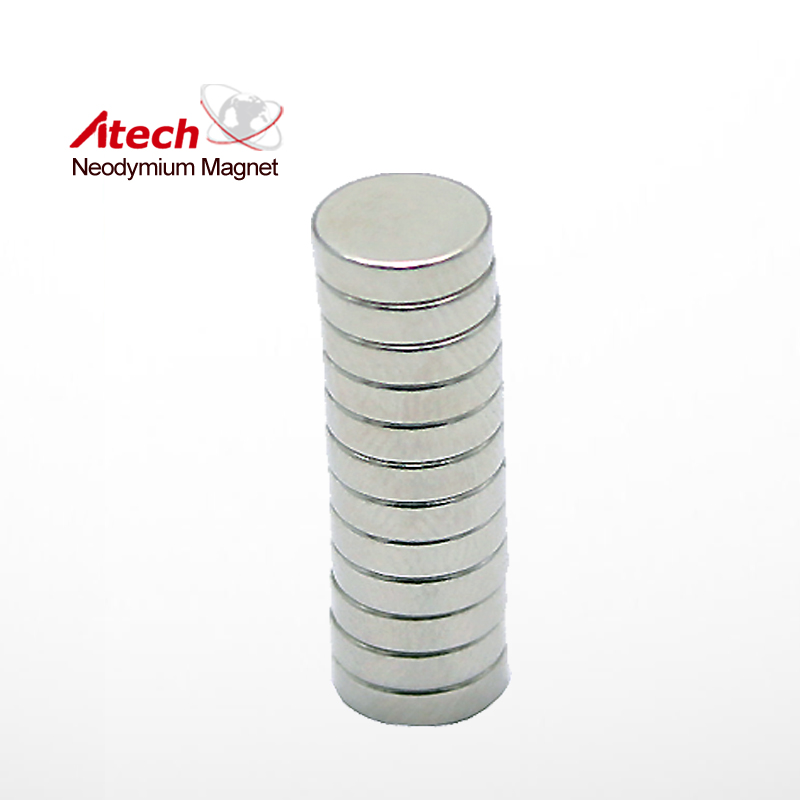

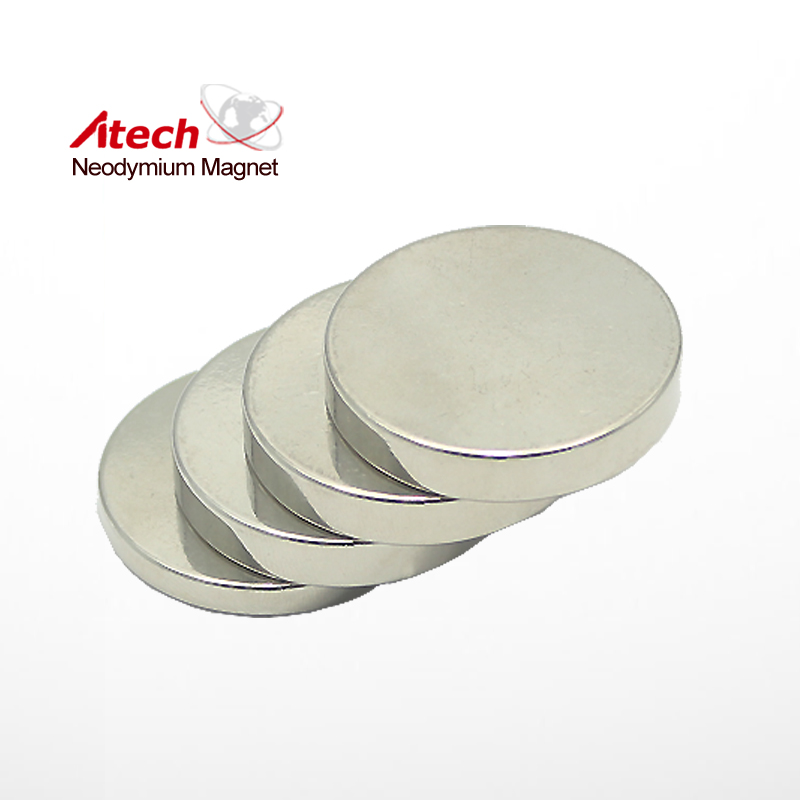

Nickel Coated N38 Neodymium Magnet Disc

Similar Products

Nickel Coated N45 Neodymium Magnet Cylinder MaterialNdFeBGradeN45Remanence Br（kGs）Max:13.8Min:13.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:46Min:43Max Temp (℃)8...
Round Magnet N52 1/2 inch x1/8 inch Small Flat Magnet Disc SKU Code: ATECHDI011 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Ope...
Gold Coated N42H Neodymium Magnet Cylinder MaterialNdFeBGradeN42HRemanence Br（kGs）Max:13.2Min:12.8PlatingAu-Cu-Au (Gold)ShapeCylinderCoercive force(kOe) Min.12Intrinsic Coercive force (kOe) Min.17Max energy product (MGOe)Max:43Min:40Max Temp (℃)120

Nickel Coated N38 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N38 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N38
Remanence Br（kGs）	Max:12.5 Min:12.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.3
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:39 Min:36
Max Temp (℃)	80

Application Area
