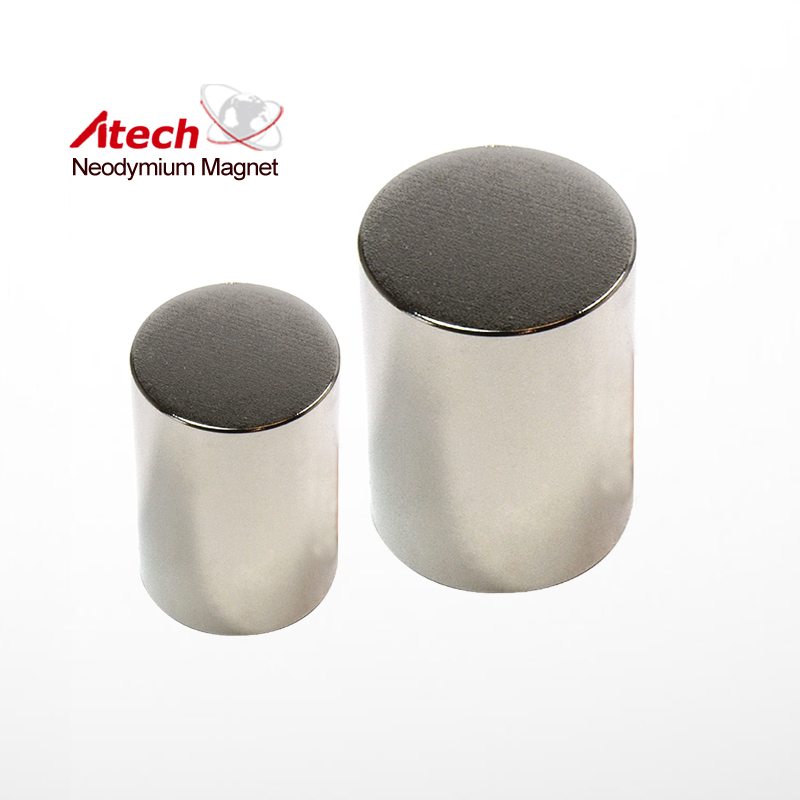

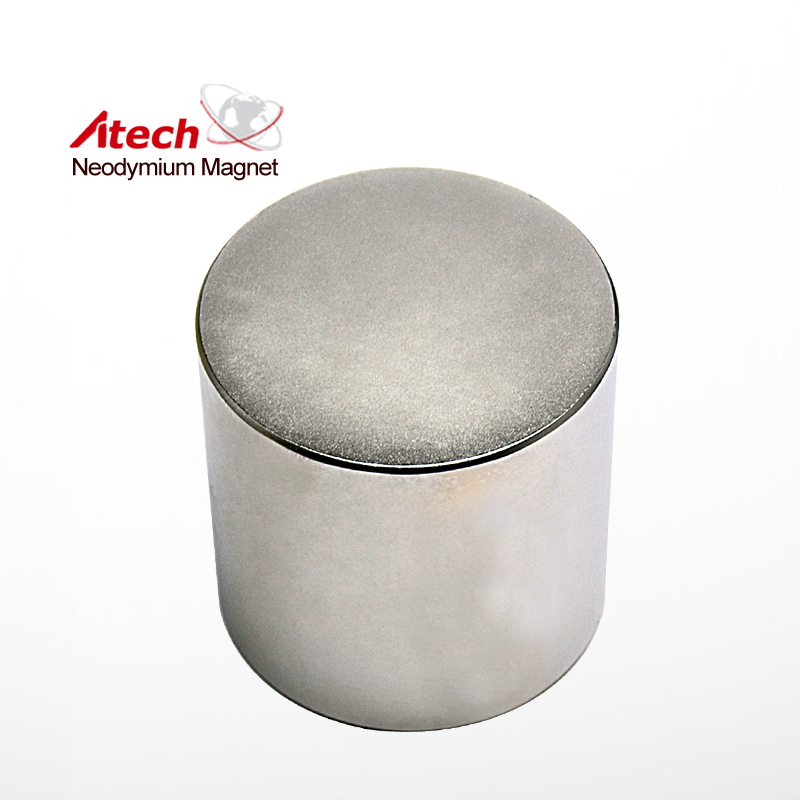

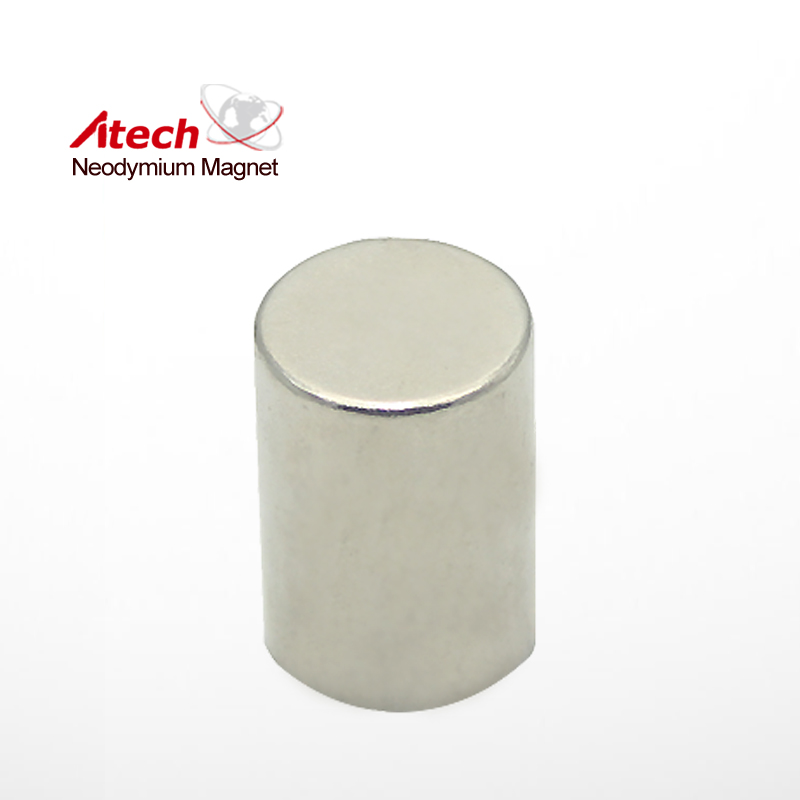

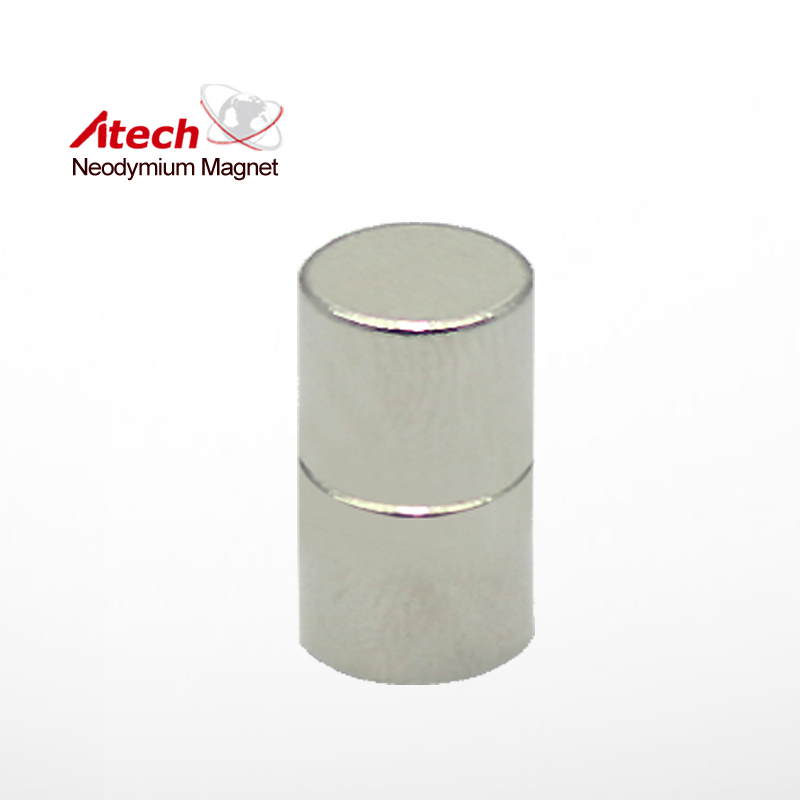

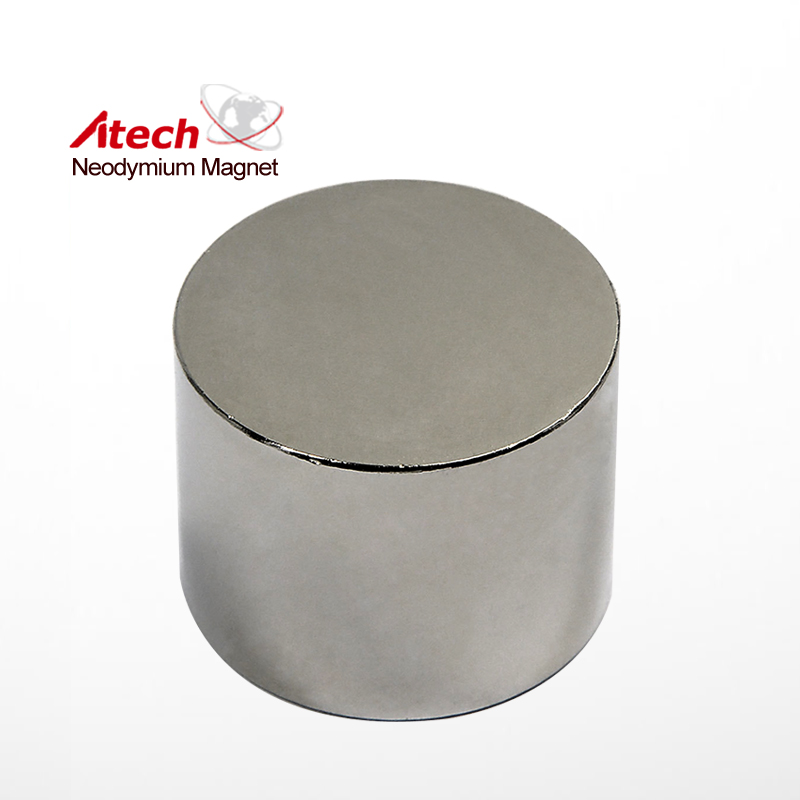

Nickel Coated N38 Neodymium Magnet Cylinder

Similar Products

Nickel Coated N38M Neodymium Magnet Disc Nickel Coated N38M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
3/4 inch x 1/8 inch Circle Magents Industrial Magnets N42 Custom Round Magnet SKU Code: ATECHDI016 Dimensions: D3/4""x 1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Op...
5/8 inch x 1/4 inch N42 Industrial Magent Custom Round Car Magnet Disc SKU Code: ATECHDI017 Dimensions: D5/8""x 1/4"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 13200 GSMax O...

Material	NdFeB
Grade	N38
Remanence Br（kGs）	Max:12.5 Min:12.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Cylinder
Coercive force(kOe) Min.	11.3
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:39 Min:36
Max Temp (℃)	80

Application Area

Leave a Message Email Us
