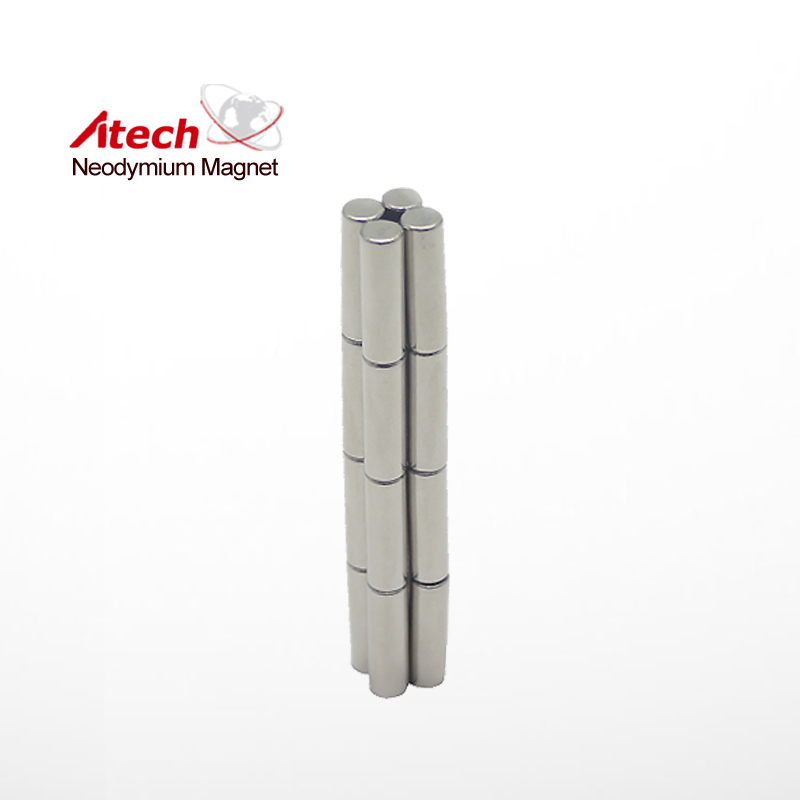

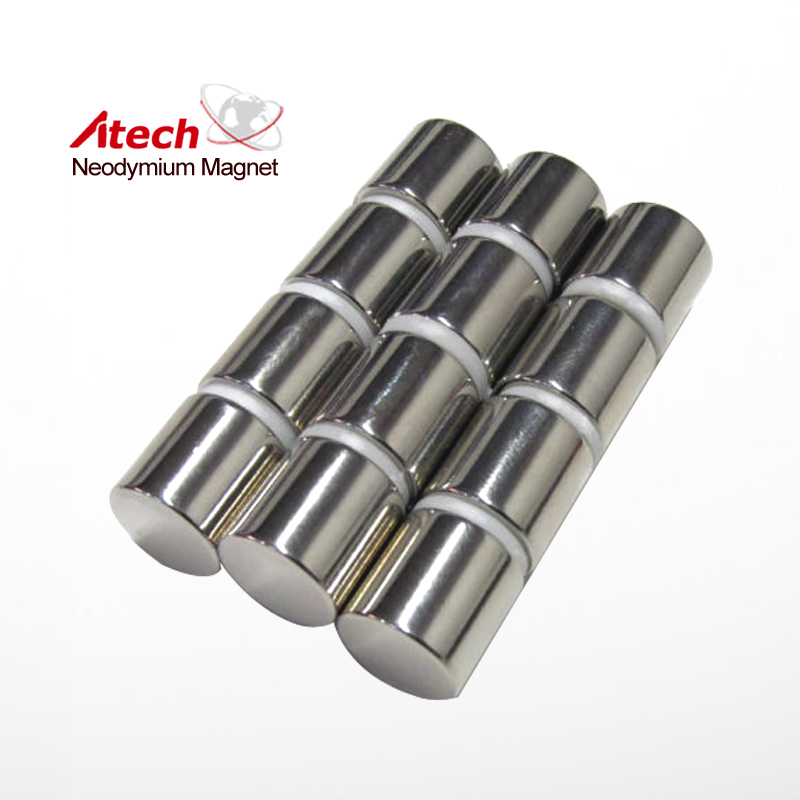

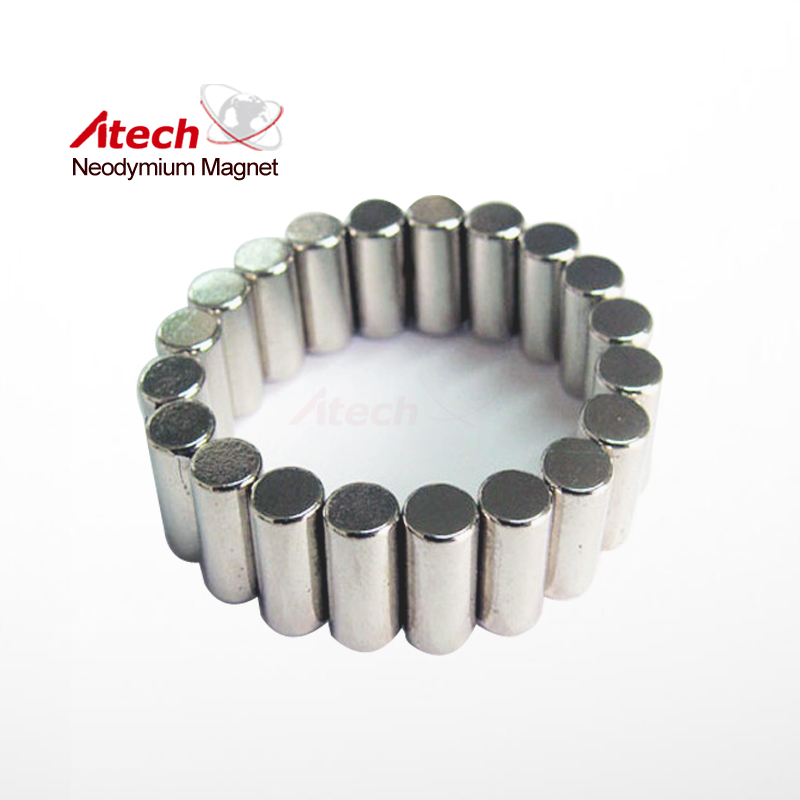

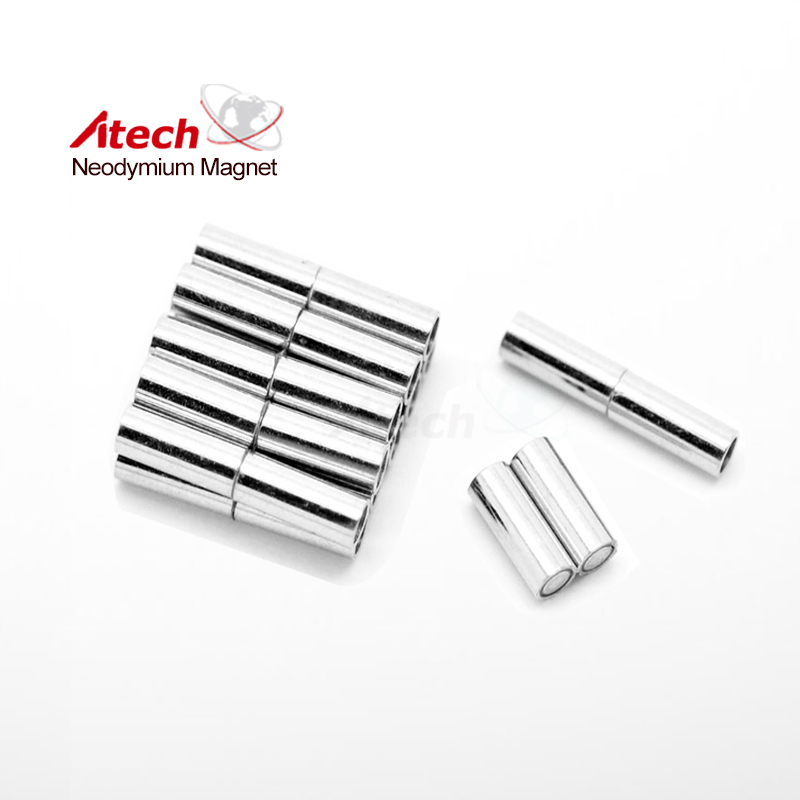

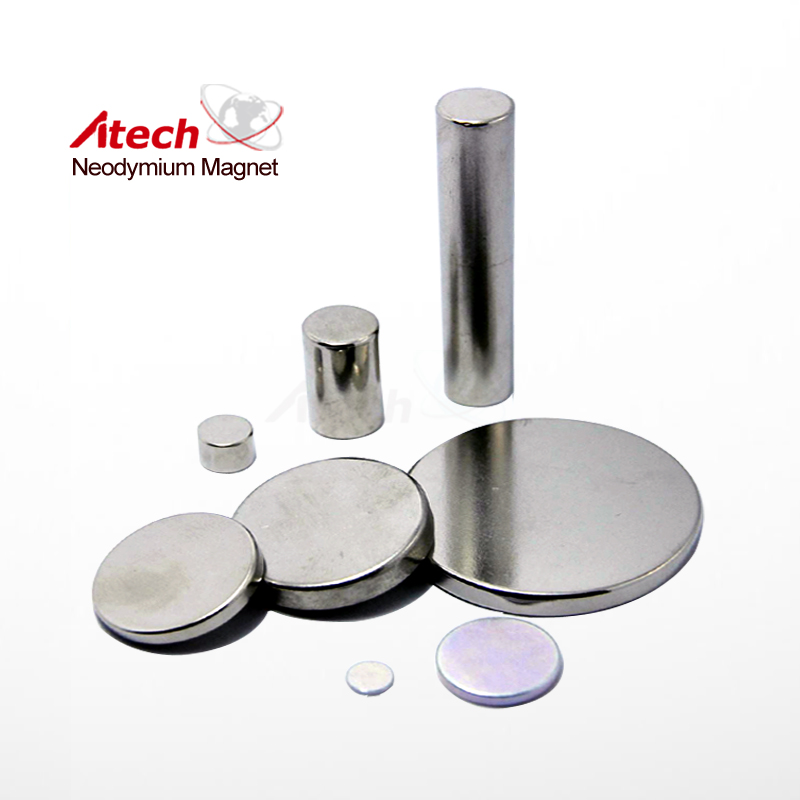

Nickel Coated N48 Neodymium Magnet Cylinder

Similar Products

Nickel Coated N48 Neodymium Magnet Disc Nickel Coated N48 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated ...
3/4 inch x 1/8 inch Circle Magents Industrial Magnets N42 Custom Round Magnet SKU Code: ATECHDI016 Dimensions: D3/4""x 1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Op...
3/4 inch x 1/8 inch N52 Strong Round Magnets Cylinder Magent Small Circle Magnet SKU Code: ATECHDI018 Dimensions: D3/4""x 1/8""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 14800 GSMax Op...

Material	NdFeB
Grade	N48
Remanence Br（kGs）	Max:14.2 Min:13.8
Plating	Ni-Cu-Ni (Nickel)
Shape	Cylinder
Coercive force(kOe) Min.	11.6
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:49 Min:46
Max Temp (℃)	80

Application Area
