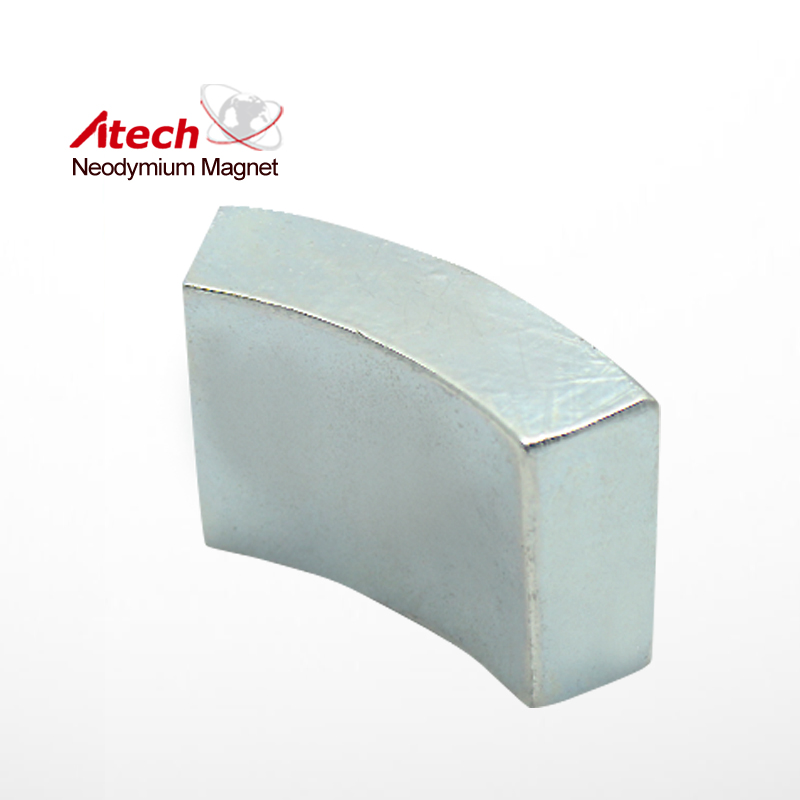

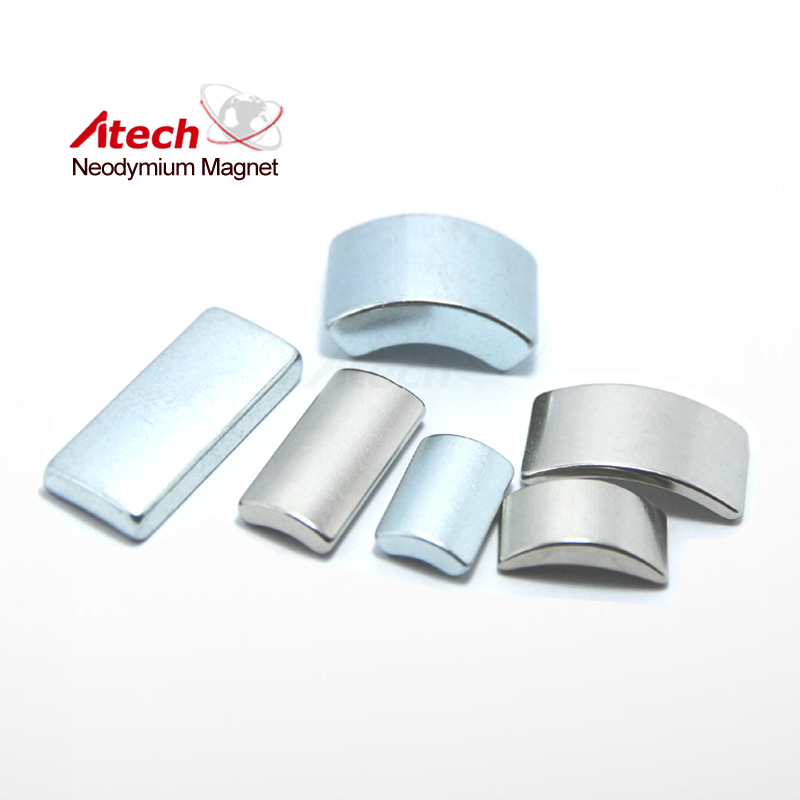

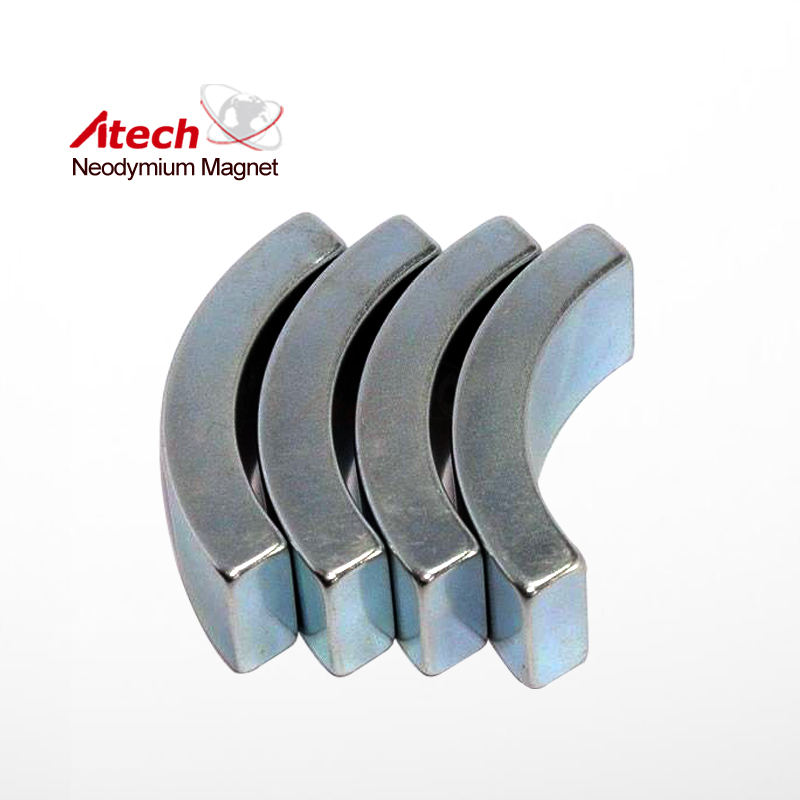

Zinc Coated N42M Neodymium Magnet Arc

Similar Products

Grade N42 Neodymium Disc Magnets D10*3mm SKU Code: ATECHDI001 Dimensions: D10 * 3mm Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMax O...
Nickel Coated N33AH Neodymium Magnet Segment MaterialNdFeBGradeN33AHRemanence Br（kGs）Max:11.7Min:11.3PlatingNi-Cu-Ni (Nickel)ShapeSegmentCoercive force(kOe) Min.10.6Intrinsic Coercive force (kOe) Min.35Max energy product (MGOe)Max:34Min:31Max Temp (℃)...
Zinc Coated N42 Neodymium Magnet Arc MaterialNdFeBGradeN42Remanence Br（kGs）Max:13.2Min:12.8PlatingZi-Cu-Zi (Zi)ShapeArcCoercive force(kOe) Min.11.5Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:43Min:40Max Temp (℃)80

Material	NdFeB
Grade	N42M
Remanence Br（kGs）	Max:13.2 Min:12.8
Plating	Zn-Cu-Zn (Zinc)
Shape	Arc
Coercive force(kOe) Min.	12
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:43 Min:40
Max Temp (℃)	100

Application Area
