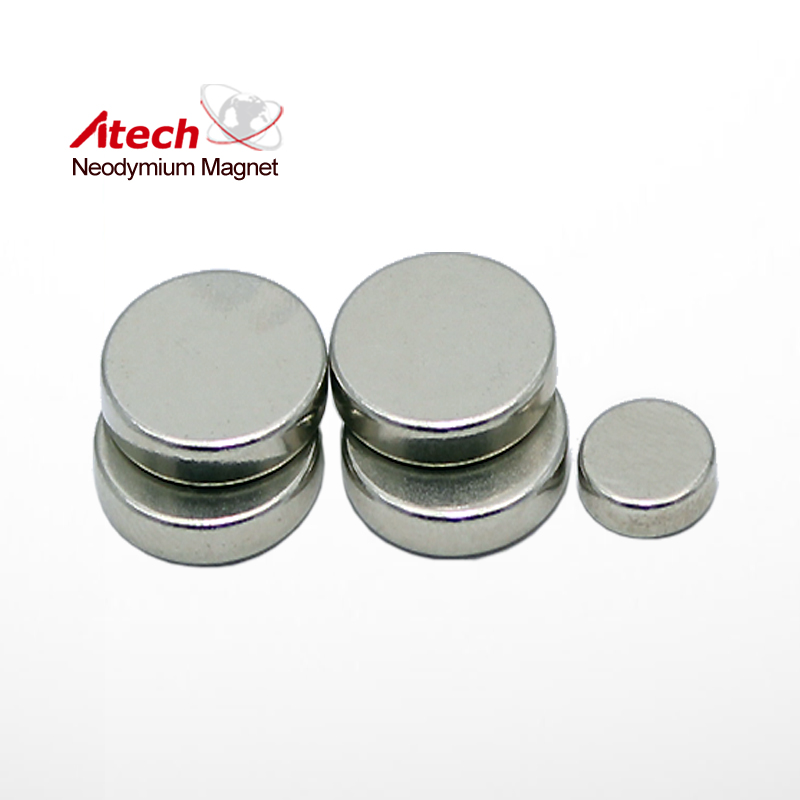

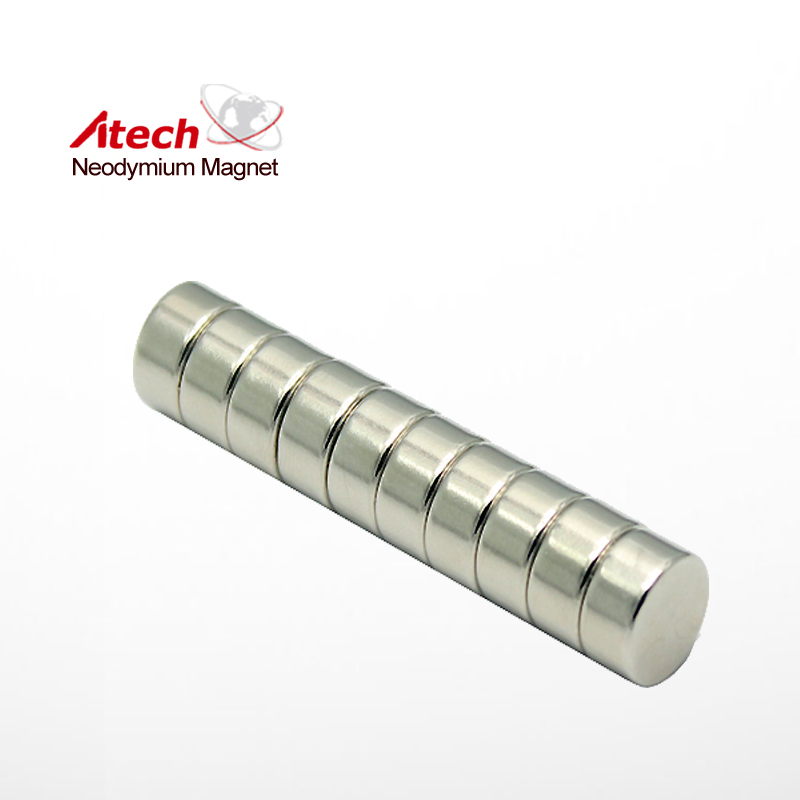

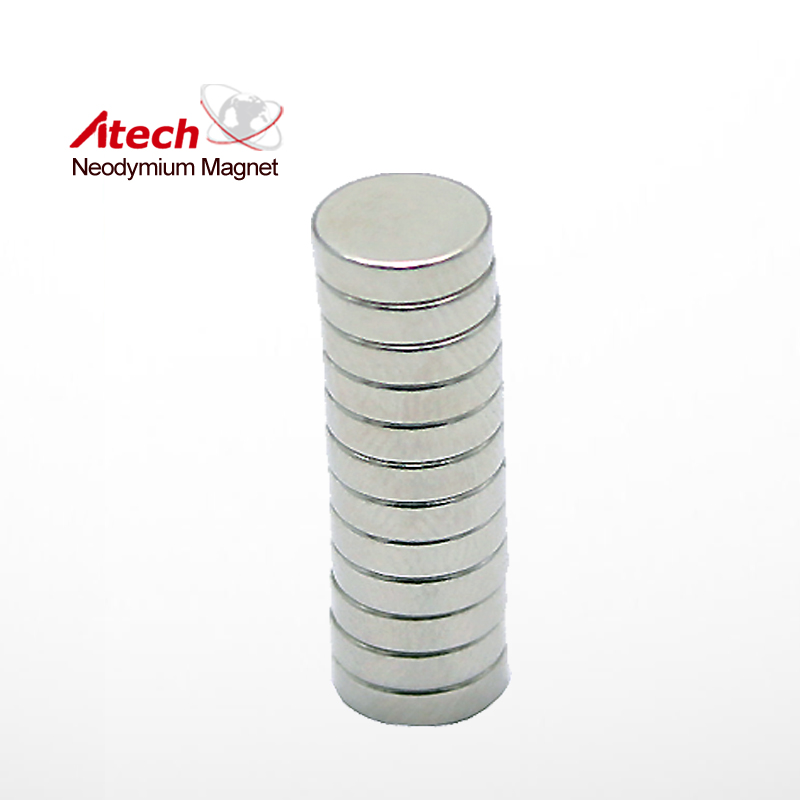

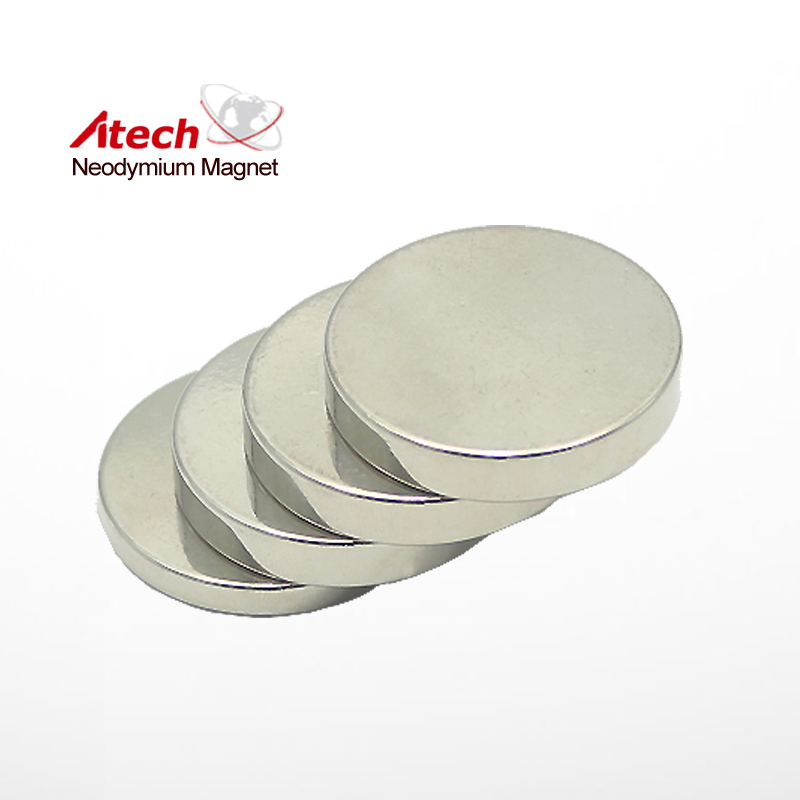

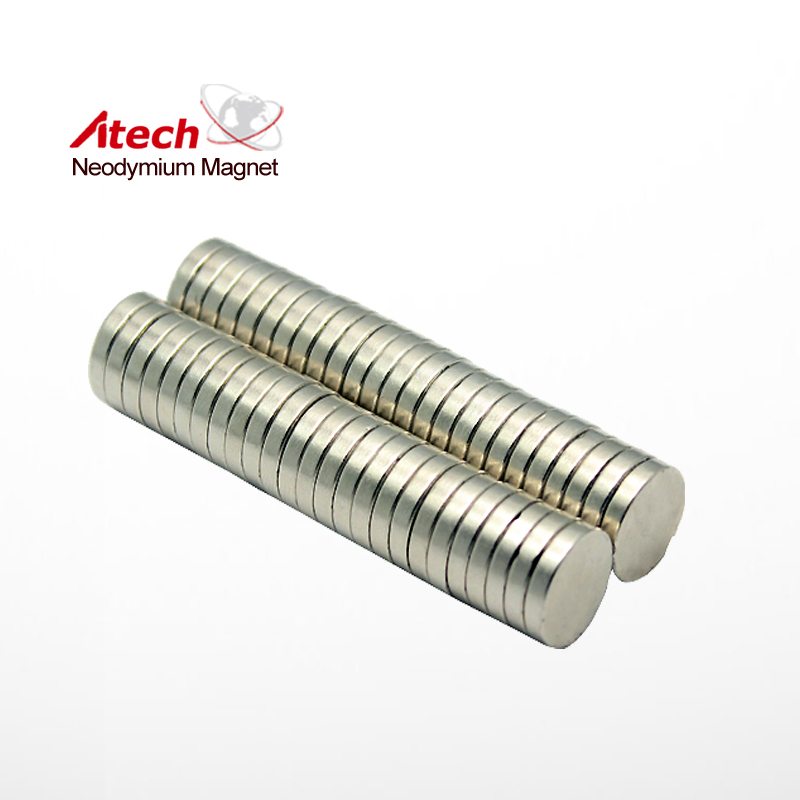

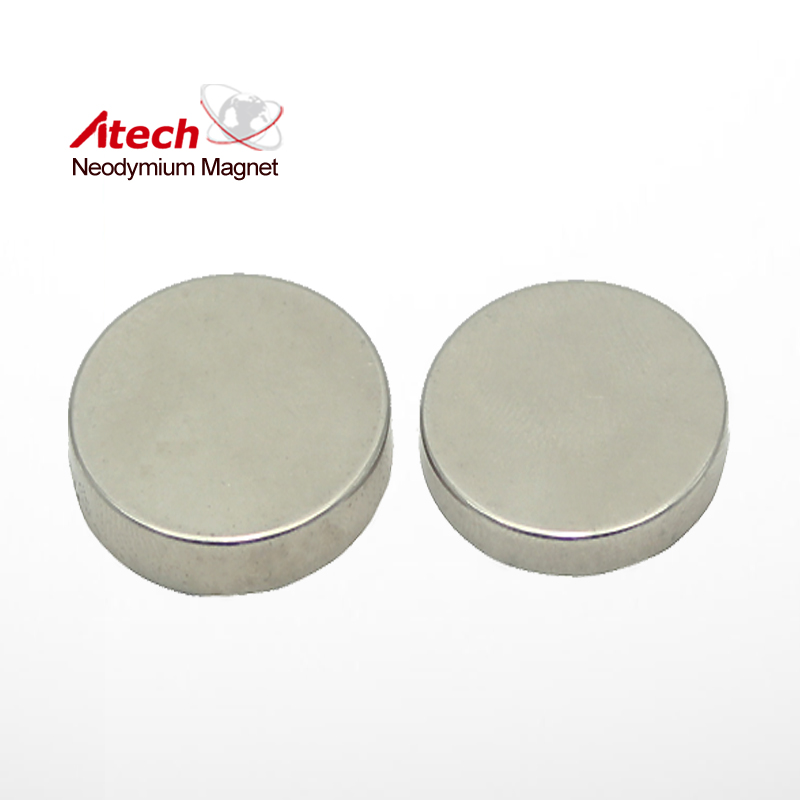

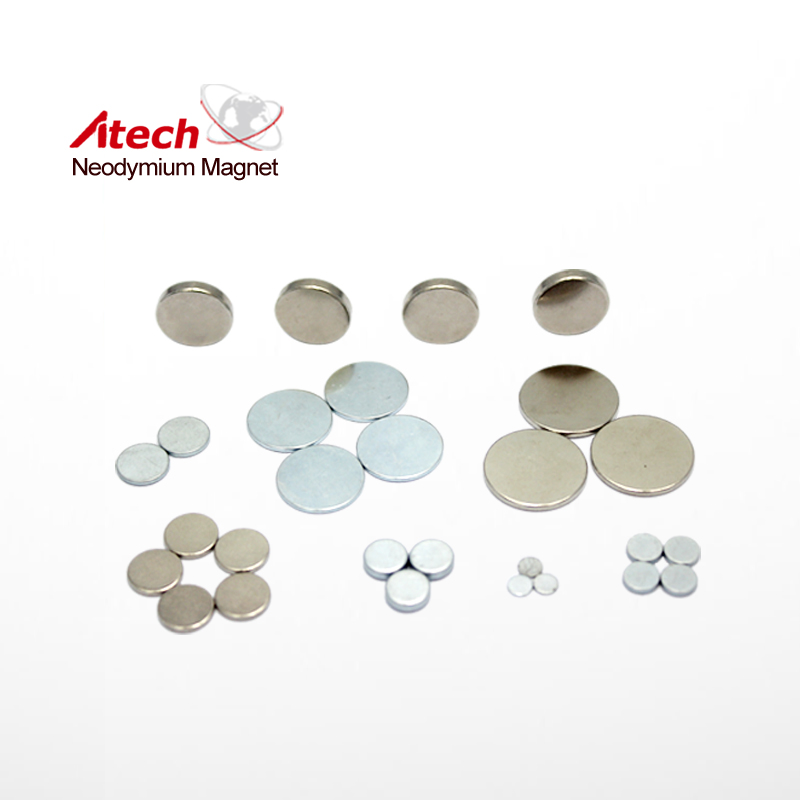

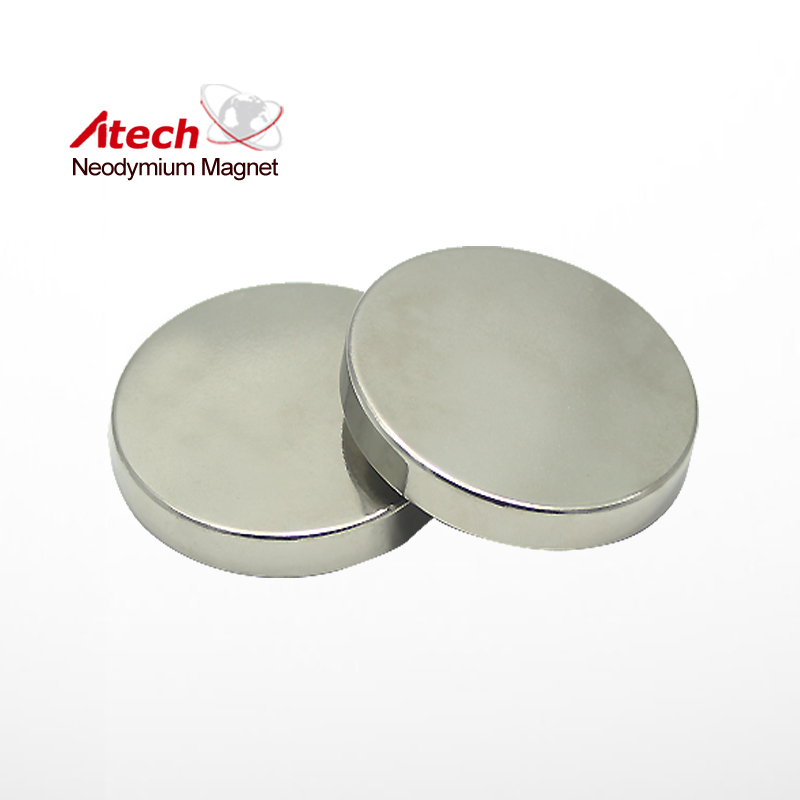

Nickel Coated N35 Neodymium Magnet Disc

Similar Products

Nickel Coated N40 Neodymium Magnet Cylinder MaterialNdFeBGradeN40Remanence Br（kGs）Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.4Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)8...
Magnetic Disc 1 inch x 1 inch N42 Neodymium Disc Magnets Cylinder SKU Code: ATECHDI024 Dimensions: D1 ""x /8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 50 gBr Max/Gauss rating: 13200 GSMax Ope...
Imanes De Neodimio 1 inch x 1 inch N52 Large Magnet Round SKU Code: ATECHDI025Dimensions: D1""x 1""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 50 gBr Max/Gauss rating: 14800 GSMax Operati...

Nickel Coated N35 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N35 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N35
Remanence Br（kGs）	Max:12.2 Min:11.7
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10.9
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:36 Min:33
Max Temp (℃)	80

Application Area
